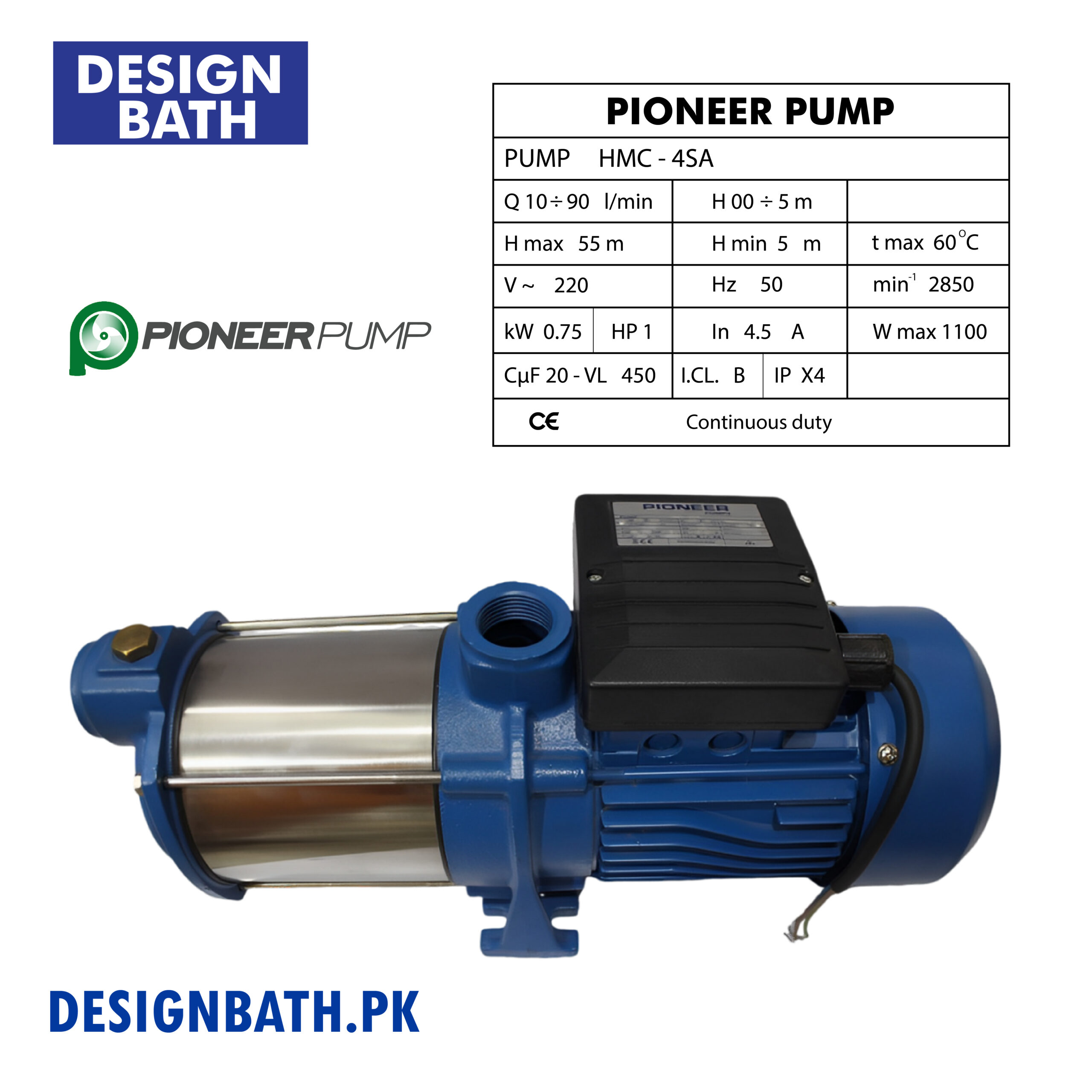

Hmc-4s 0.55kw 0.75HP 1 Inch Stainless Steel Pump Casing Horizontal Multistage Centrifugal Water Pump

Hmc-4s 0.55kw 0.75HP 1 Inch Stainless Steel Pump Casing Horizontal Multistage Centrifugal Water Pump

Suitable for use with clean water even where air is presentand with liquids that are not chemically aggressive towards the materials from which the pump is made.

The pumps are designed to pump water even in cases whereair is present. As a result of their quietness, reliability and low energy consumption they are recommended for use in domestic and civil applications such as the pressurisation and distribution of water in combination with pressure sets, and in rain water recovery and irrigation systems, etc.

The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Categories: ,

Motor

※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector for single phase
※ Single-phase 220V/50Hz, 60Hz if request
Three-phase 380V/50Hz, 60Hz if request

Operating conditions

※ Liquid temperature up to 60℃
※ Ambient temperature up to 40℃
※ Total suction lift up to 8m

ComponentConstruction
※ Pump body:
※ Pump support:
※ Motor housing:
※ Impeller:
※ Motor shaft:
※ Mechanical seal:		Cast iron + Stainless steel
Cast iron
Aluminum
PPO
AISI304 SS
SIC/Graphite
