Concealed Tanks in Lahore - Full Frame, Half Frame and Frameless Options
Planning a wall-hung toilet or simply looking for a cleaner, more modern bathroom finish? The concealed tank is one part of the bathroom that should never be chosen on price alone. Once it is installed behind the wall, the correct frame, compatible flush plate and access to spare parts matter just as much as the brand.
At Design Bath, we help homeowners, builders and plumbers compare concealed tanks from GROHE, Faisal Sanitary, Aotco and Sonex. Our range includes full-frame, half-frame, frameless and slim systems for different bathroom layouts and toilet types.
Visit our showroom on Main Walton Road near Defence Mor, Lahore, or WhatsApp +92 324 6669988 with your toilet model, bathroom drawing or wall measurements. A little information before purchase can prevent an expensive compatibility problem later.
Current Concealed Tank Prices in Pakistan
There is no single concealed tank price in Pakistan because the final cost depends on the brand, frame construction, cistern depth, flushing mechanism, flush plate and accessories supplied with the system.
A frameless cistern normally costs less than a complete load-bearing frame, while premium full-frame systems are designed as complete installation solutions for compatible wall-hung toilets. Two products that look similar in a photograph may include very different components, so always compare what is inside the box as well as the selling price.

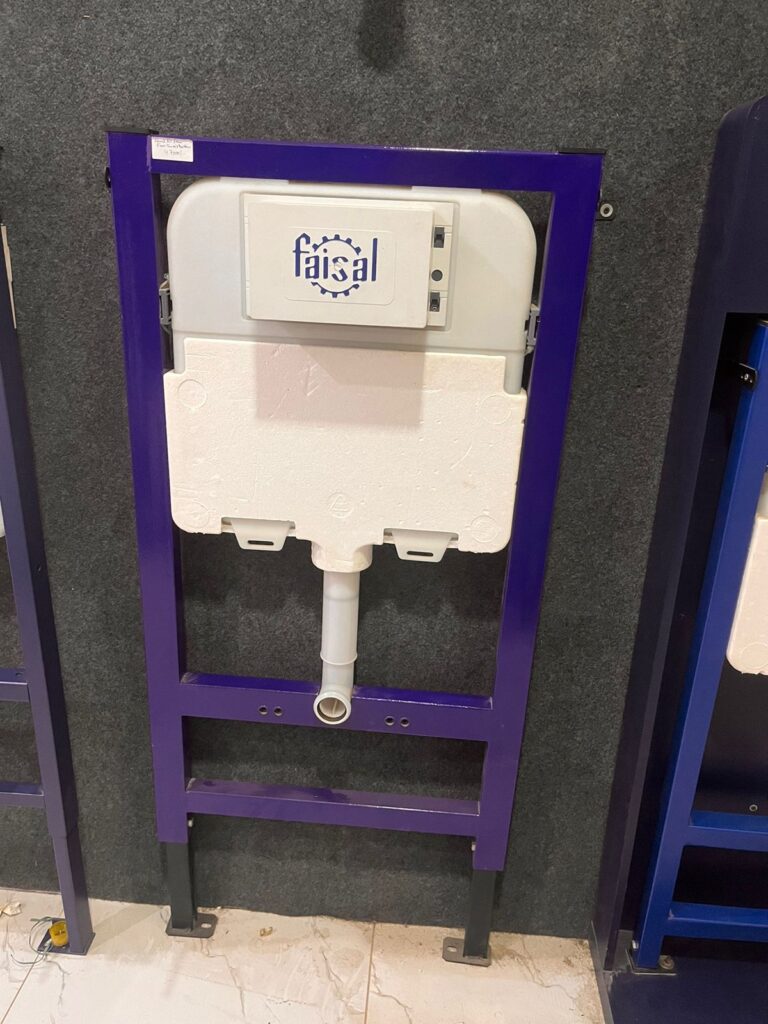

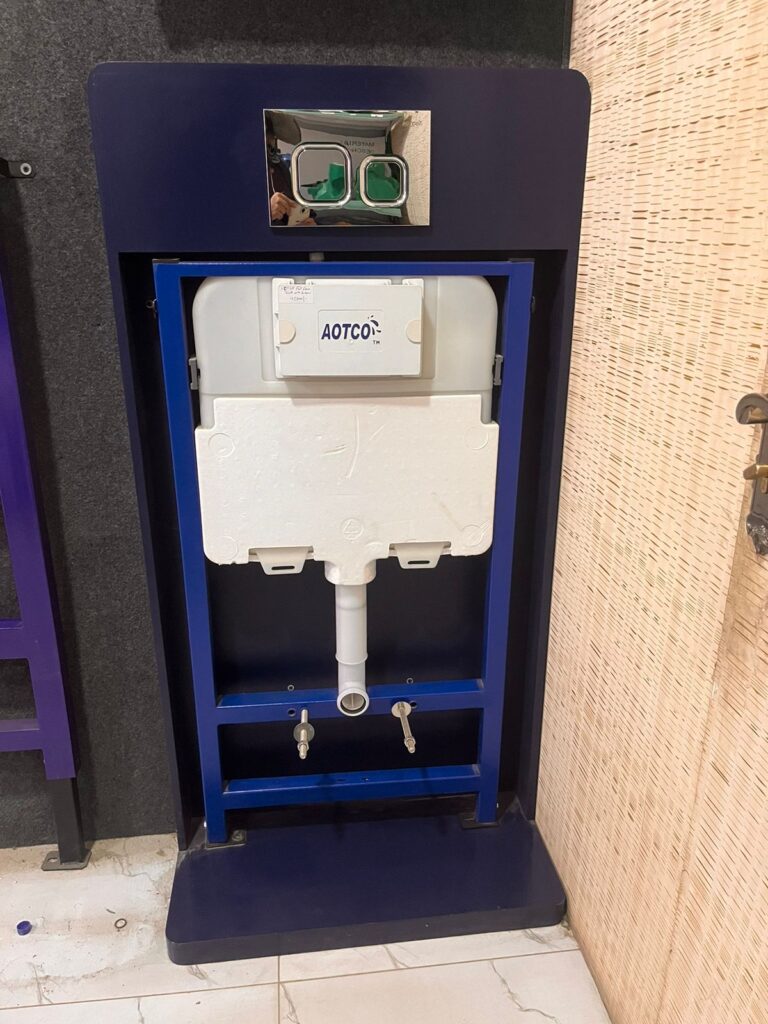

Our current collection includes GROHE Rapid SL 38772001, GROHE Solo Slim 39694000, Aotco full-frame, half-frame and frameless systems, the Faisal full-frame concealed tank and Sonex concealed flush tanks. Live prices are shown on the product cards where available. For a model marked Contact for Price, please ask us for the latest stock and package details.
Aotco and Faisal Sanitary are produced by the same manufacturer. Aotco is offered at competitive pricing with a 10-year warranty and home service. Please confirm the current warranty terms with our team before you order.
What Is a Concealed Tank?
A concealed tank, also known as a concealed cistern or in-wall flush tank, is fitted behind a wall or service panel. After installation, the cistern and most of the plumbing are hidden; only the toilet and flush plate remain visible.
The result is a neat, uncluttered bathroom with less visible pipework. A wall-hung toilet also leaves the floor underneath open, which makes routine cleaning easier. Depending on the model, a concealed cistern can be used with a wall-hung, back-to-wall or floor-mounted toilet.
People sometimes worry that a hidden tank will be impossible to repair. In most quality systems, the flush plate also acts as the service opening, allowing a technician to reach the inlet valve, flush valve and other internal parts without breaking the finished wall. Correct installation and access to compatible spare parts are therefore extremely important.
Which Type of Concealed Tank Do You Need?
Full-Frame Concealed Tank
A full-frame system includes a strong metal structure designed to support a compatible wall-hung toilet. The frame provides mounting points for the cistern, toilet pan and waste connection, making it the most complete option for a new wall-hung installation.
Before ordering, confirm the frame dimensions, fixing points, finished toilet height, waste outlet position and flush-plate compatibility. The installer should follow the manufacturer’s drawing rather than estimating these measurements on site.
Half-Frame Concealed Tank
A half-frame tank uses a smaller supporting structure. It can suit certain wall constructions and model-specific installations, but it should not automatically be treated as a replacement for a complete load-bearing frame.
Ask your plumber to confirm how the wall, floor and toilet will be supported. The correct answer depends on the selected product and the manufacturer’s installation requirements.
Concealed Tank Without Frame
A frameless concealed tank contains the cistern but does not provide an independent load-bearing structure for a wall-hung toilet. Depending on the model, it may be intended for a solid-wall installation, a back-to-wall toilet or a floor-mounted toilet.
Never assume that the wall alone can safely carry a wall-hung commode. Use a frameless cistern only in the type of installation approved by its manufacturer.
Slim Concealed Cistern
A slim cistern is useful where the service wall or duct has limited depth. It can save valuable space, but the exact built-in depth, inlet position, outlet connection and compatible flush plate must be checked before the wall is constructed.
Full Frame vs Half Frame vs Frameless
| Type | Common use | Main point to confirm |
|---|---|---|
| Full frame | Compatible wall-hung toilet | Frame supports the toilet; verify anchors, height and outlet |
| Half frame | Model-specific supported installation | Wall and floor support must meet the manufacturer’s instructions |
| Without frame | Back-to-wall, floor-mounted or approved solid-wall installation | The cistern does not independently support a wall-hung toilet |
| Slim cistern | Bathrooms with limited service-wall depth | Check exact built-in depth and flush-plate compatibility |
Compatible Wall-Hung Toilets
A full-frame concealed tank is only half of the installation. The commode must be designed to mount on that frame, with a matching waste outlet and fixing distance. Below are the wall-hung toilets we currently stock, and our team can confirm which tank suits the model you choose.
What to Check Before You Buy
A concealed tank becomes part of the building, so five minutes of checking before purchase can save a great deal of work after tiling. Bring the following information when you visit or message Design Bath:
- The toilet type: wall-hung, back-to-wall or floor-mounted.
- The toilet brand and model number, if already selected.
- Available wall or service-duct depth.
- A bathroom drawing, site photograph or basic measurements.
- The planned waste outlet and water inlet positions.
- The required flush-plate colour and finish.
- Whether the flush plate and mounting kit must be included.
- Who will install the system and whether they have used that model before.
Eight Buying Checks That Matter
| Check | Why it matters |
|---|---|
| 1. Toilet compatibility | The cistern, frame and toilet must be designed to work together. |
| 2. Structural support | A wall-hung toilet requires the correct approved support system. |
| 3. Wall depth | A standard frame may not fit a narrow duct or service wall. |
| 4. Flush plate | Plates are not universally interchangeable between brands and series. |
| 5. Box contents | A lower price may exclude the plate, fittings or mounting accessories. |
| 6. Spare parts | Valves, seals and compatible plates should remain available for servicing. |
| 7. Written warranty | Confirm which components are covered and who provides service. |
| 8. Installer experience | Correct alignment and pressure testing are essential before tiling. |
Why Homeowners Choose Concealed Tanks
A concealed system is popular because it combines a clean appearance with practical use. When the product and installation are right, it can offer:
- A modern bathroom with less visible plumbing.
- More open floor space around a wall-hung toilet.
- Easier cleaning underneath and around the toilet.
- Dual-flush water-saving options on compatible models.
- Flexible finished toilet height on suitable full-frame systems.
- Routine service access through the flush-plate opening.
The advantages depend on good product selection and careful installation. A premium tank cannot correct an unsuitable wall, an incompatible flush plate or poorly aligned drainage.
Installation Matters as Much as the Product
The frame and cistern should be installed, aligned and tested before the service wall is closed. Your installer should check frame stability, water connections, drainage alignment, flush operation and access through the plate opening.
Ask for the system to be pressure-tested before tiles are fitted. Keep the model number, installation manual and warranty information in a safe place; these details make future servicing much easier.
Routine internal parts can usually be reached by removing the flush plate. Hidden pipe joints are a different matter, which is why leak testing before closing the wall is one of the most important steps in the entire job.
Why Visit Design Bath in Lahore?
Buying a concealed tank is easier when you can compare more than a product photograph. At Design Bath, customers can discuss frame type, available depth, toilet compatibility, flush-plate options, current price and stock before placing an order.
Our showroom is located on Main Walton Road near Defence Mor, Lahore. Homeowners, plumbers, architects and contractors are welcome to bring product references, drawings or site measurements so our team can help narrow down the suitable options.
For the latest price or stock confirmation, call or WhatsApp +92 324 6669988.
Frequently Asked Questions
What is the concealed tank price in Pakistan?
The price depends on the brand, frame type, cistern depth, flushing mechanism, flush plate and installation accessories included. Check the live product cards on this page or contact Design Bath for the current price of a specific model.
Can one concealed tank be used with every toilet?
No. Full-frame systems are normally made for compatible wall-hung toilets, while frameless cisterns are intended for back-to-wall, floor-mounted or approved solid-wall installations. Check the toilet and cistern specifications together.
What is the difference between a full-frame and half-frame concealed tank?
A full-frame system provides a complete supporting structure for a compatible wall-hung toilet. A half-frame system uses a smaller structure and must be matched carefully with the wall, floor and toilet installation.
Can a concealed tank be repaired after tiling?
Routine internal servicing is normally completed through the opening behind the flush plate. The system should still be installed and tested properly before tiling because hidden connection problems can require more work.
Does the flush plate come with the concealed tank?
It depends on the product package. Some models include a plate, while others require one to be purchased separately. Confirm the package contents and compatible plate model before ordering.
How much wall depth is required?
The required depth varies by model. Slim cisterns need less space, while full-frame systems may require a deeper service wall. Always use the manufacturer’s installation drawing instead of estimating.
Which concealed tank brand should I choose?
Choose according to toilet compatibility, available space, budget, warranty and local spare-parts support. Comparing the complete specification is more useful than choosing on brand name or price alone.
Can Design Bath arrange delivery outside Lahore?
Contact Design Bath with your city and selected model to confirm current delivery availability, charges and safe-handling requirements.
Not sure which concealed tank fits your bathroom?
Need help choosing between a full-frame, half-frame or frameless concealed tank? Send us your toilet model or bathroom drawing and our team will confirm the right system, current price and stock.
